Samsung Ducted Air-conditioners

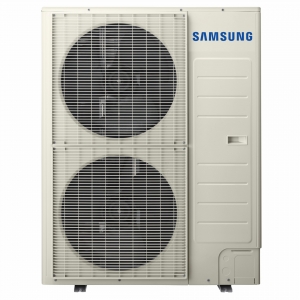

A Samsung inverter reverse cycle Ducted Air Conditioner is designed to enable each room in your home to be cooled or heated by one system. Ducted Systems are also relatively unobtrusive as the conditioned air is distributed through ducts hidden in your roof space to outlets in the ceiling of each room. The primary components of your Samsung Ducted System consist of the indoor unit, outdoor unit and controller.

Samsung Duct S indoor units contain up to 3 fans* and are designed to handle duct lengths with static pressures of up to 200pa**; to provide powerful airflow in your home. Most ducted air conditioners are installed in a variety of locations, so they need to be accessed in different ways for maintenance. The Samsung DUCT S Air Conditioner is designed to be accessed from three directions – top, side and bottom – using an easy to remove Slide Fit cover. As a result, it’s much easier to maintain wherever it’s installed.

Samsung Ducted Air Conditioners are designed to keep on working, even on those extremely hot or cold days. With an operating range of -15°C to 50°C outside air temperature for cooling, and -20°C to 24°C for heating, you can be assured that your unit can work when you need it. To accompany your Ducted Air Conditioning System, is a choice of controllers. The MWR-WE10 is a LCD Backlit controller with a host of features.

PRODUCT CODE PRODUCT DESCRIPTION PRICE (AUD)
SAMSUNG Reverse Cycle Ducted Air Conditioning
AC052TNHDKG/SA 5.2kW cooling,  Ducted Split r32 POA
AC071TNHDKG/SA 7.1kW cooling,  Ducted Split r32 POA
AC090TNHDKG/SA 8.5kW cooling,  Ducted Split r32 POA
AC100TNHPKG/SA 10kW cooling,  Ducted Split r32 POA
AC120TNHPKG/SA 12kW cooling,  Ducted Split r32 POA
AC140TNHPKG/SA 14kW cooling,  Ducted Split r32 POA
AC160TNHPKG/SA  16kW cooling,  Ducted Split r32 POA
AC180JNHFKH/SA  18kW cooling,  Ducted Split r32 POA
AC200JNHFKH/SA  20kW cooling,  Ducted Split r32 POA

*Above prices subject to change without notice. All prices include GST, and are for the system only and does not include installation or other costs. Please contact Thermal Care today for a comprehensive quote on all split or ducted systems, repairs and servicing.
